Temperature & Humidity Sensor

Temperature & Humidity Sensor

The temperature sensor is crafted for effortless measurement and monitoring of ambient temperature and humidity. It boasts a plug-and-play installation, including a built-in LoRa communication module for seamless wireless data transmission. Moreover, it provides optional sensor probes to cater to different accuracy requirements for diverse applications. The sensor cable length is extendable up to 10 meters.
Features:
- Built-in temperature and humidity sensor
- Built-in LoRa communication module. The data can acquired wirelessly transmitted
- Fully Calibrated, linearized
- Optional sensor probe for different accuracy for different application
- Sensor cable length can be up to 10 meters (standars is 1 meters)

Specifications

MCU
Arm 32-bit Cortex -M0+ with MPU
TX Power
Up to 20 dBm
Power Supply
3.6V/8500mAh (replaceable)
RX Sensitivity
Down to -137 dBm
Standby current
40µA
Communication Protocol
LoRaWAN Class A AS923-2
TX Transmission Current
126 mA

Specification of Humidity Sensor Part

Range
0-100 %Rh (Extended)
Resolution
@25℃ - 0.04 %Rh (JUP-THA)
Repeatability
±0.1 %Rh (Medium, typical)
Response Time
8 s
Accuracy Tolerance
±2.0 %Rh(Type B)

Specification of Temperature Sensor Part

Range
-40 ~ 125℃
Resolution
0.01℃
Repeatability
0.1℃
Response Time
𝛕63%, >5 s
Accuracy Tolerance
±0.2 ℃

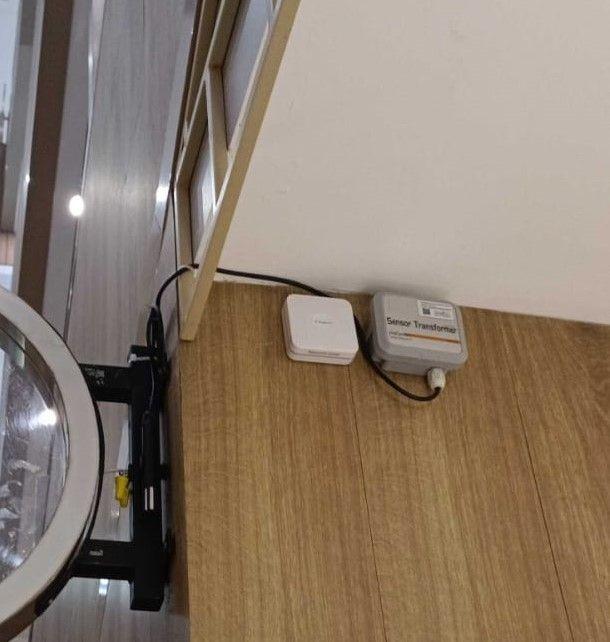

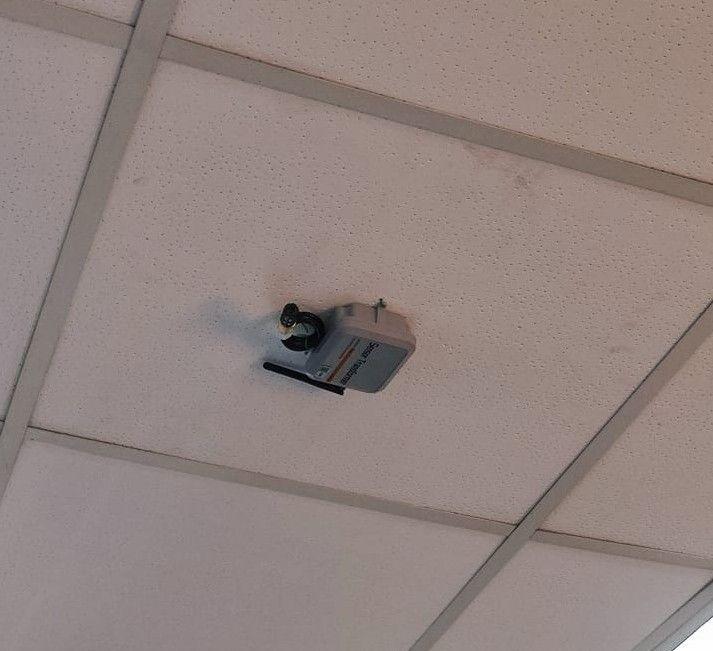

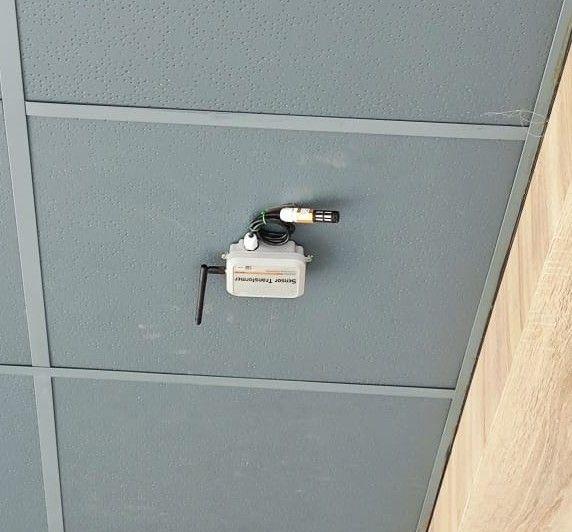

Implementations

WhatsApp Image 2023-11-16 at 09.58.02.jpegIMG-20241119-WA0061.jpgIMG-20241119-WA0059.jpg
Download DataSheet
