Calibration by Directorate of Metrology

Specifications

Environment Class

M1 / E2

Relative Humidity

≥ 95%, non-condensing

Limit Operating Temperature Range

-40°C ~ + 70°C (3K7)

Specified Operating Temperature Range

-25 °C ~ + 55 °C

LoRaWAN Parameters

Channels

8 settable channels

TX Power

Up to 22 dBm

ISM Bands

AS923

LoRaWAN Class

Class A / Class C

RX Sensitivity

Down to -134 dBm

Spreading Factor

SF7 ~ SF10 (adaptive)

LBT(Listen Before Talk)

Yes

Electrical Parameters

Basic Current

1A or 5A

Nominal Voltage

3*230V/400V (AC)

Starting Current

1‰Ib / 1mA

Connection Wiring

3P4W L1L1-L2L2-L3L3-NN

Operating Voltage

80% ~ 120% Un

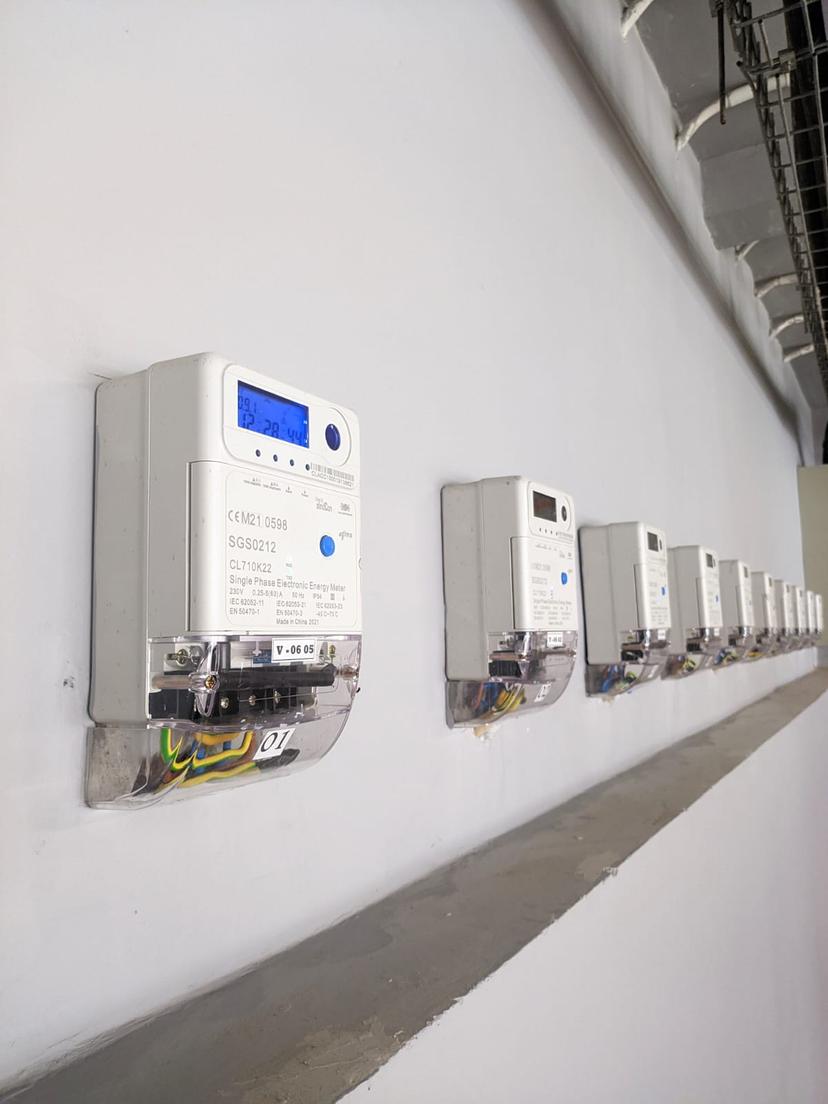

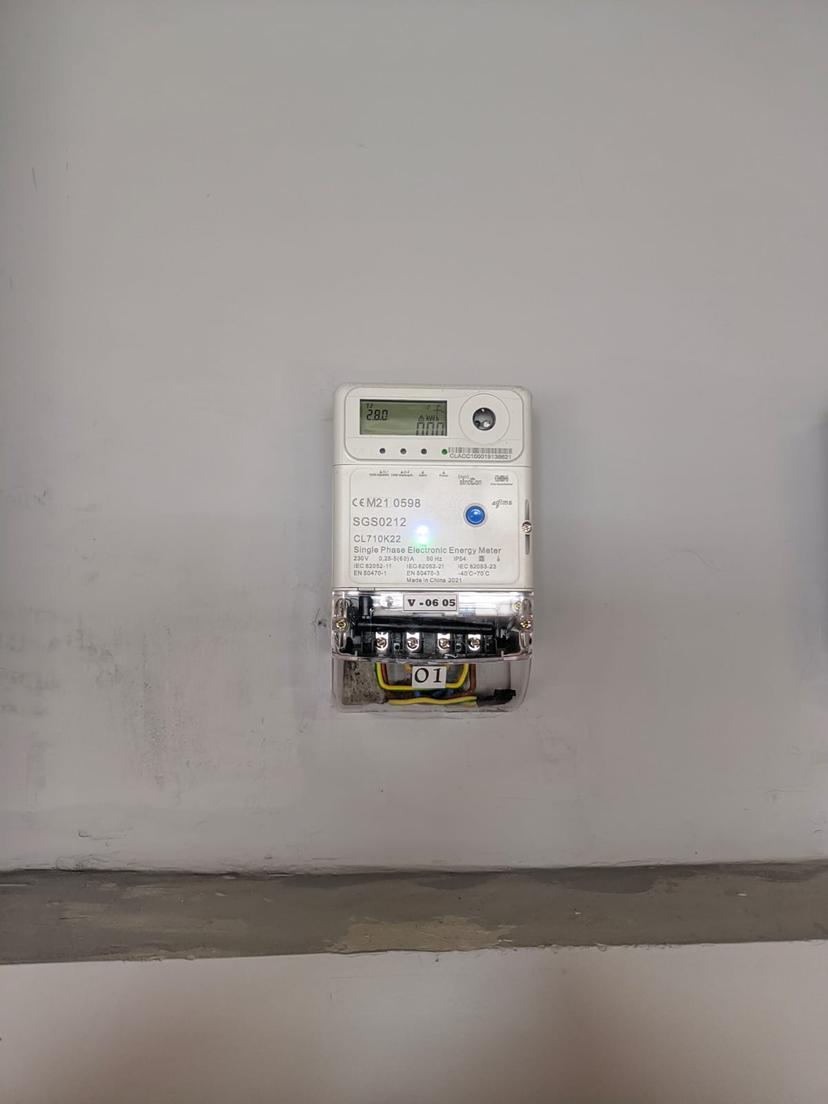

Implementations
